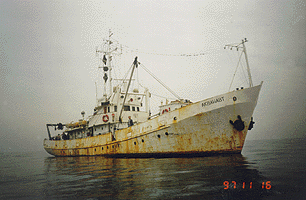

r/v"Akvanavt" cruise to the North-Eastern Black Sea in November 12-18, 1997
During the expedition there were obtained data on:
Temperature, Salinity, Transparency, Dissolved Oxygen, NO3, NO2, NH4, H2S(iod.), H2S (phot.), dissolved Mn. and CH4 for the depth levels 0 -2150 m. The particulate matter samples were collected at the Nepheloid Redox Layer depths. We were lucky with weather and were able to work all the period of cruise.

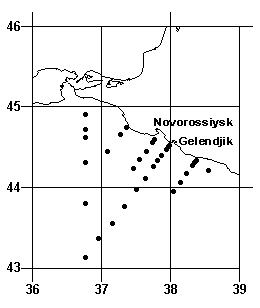

In the Map above only the Stations with hydrochemical data sampling are shown.
| Parameter/density curves are | here |
Preliminary results on the hydrochemical parameters distribution at Section Gelendjik - Center of the Sea
(Click on image to enlarge)
 |
 |

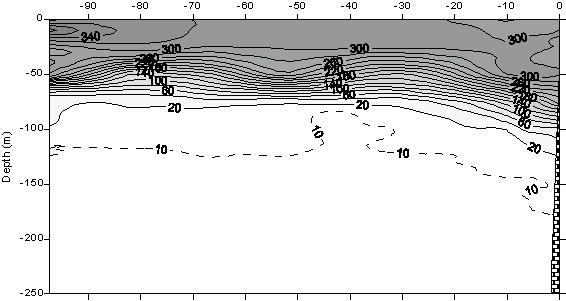

Dissolved oxygen, uM
(Winkler titration, sampling without argon contamination) |

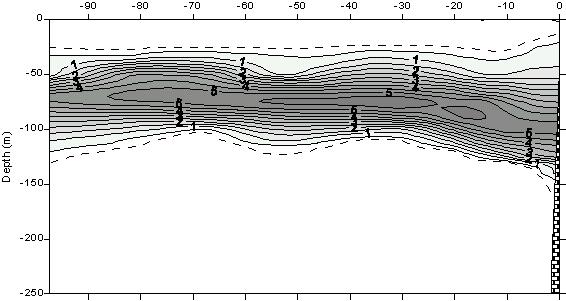

Nitrates, uM |
 |
 |

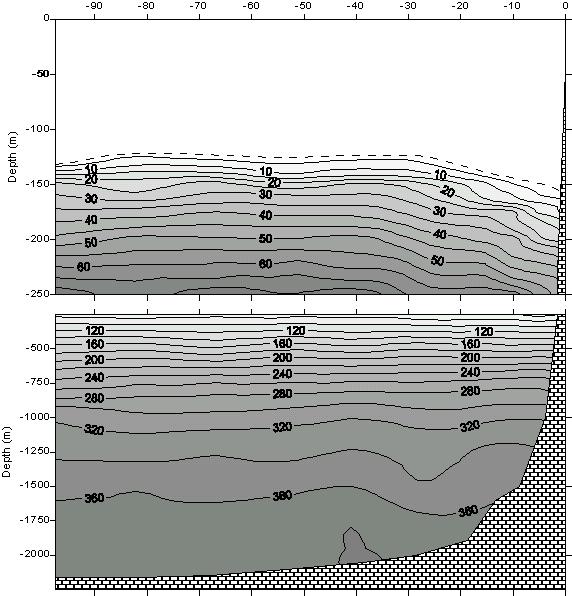

Hydrogen sulfide

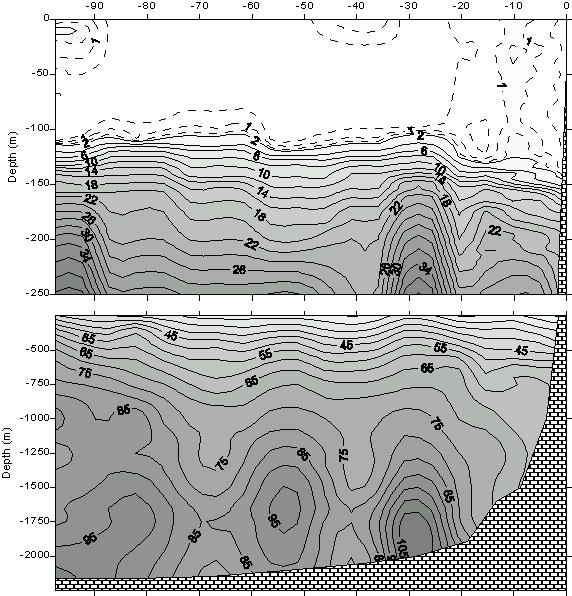

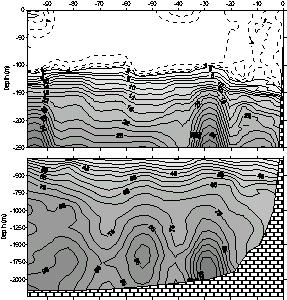

(Iodometric for large values, photometric for concenrations less than 20-30 uM) | Ammonia, uM
(Sagi-Solorzano, dilution for values > 15-20 uM) |
 |  |

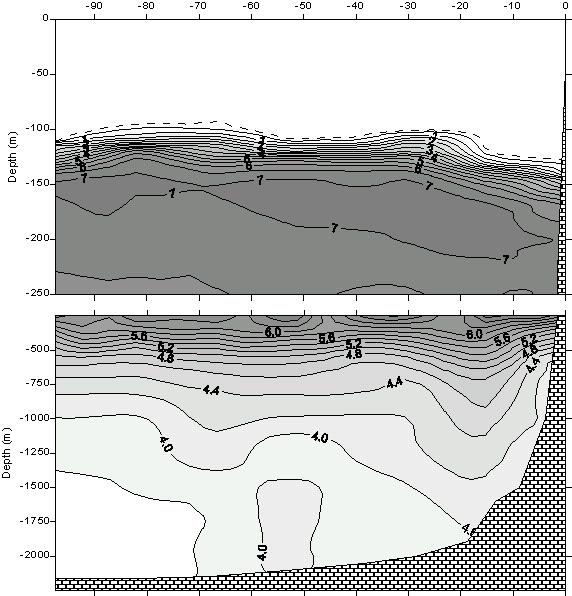

| Dissolved manganese, uM | Nitrites, uM |
 The expedition was organized by
Shirshov Institute of Oceanology (Moscow and
Southern Branches) of the
Russian Academy of Sciences. This work
was supported by the Russian Foundation for Basic
Research (RFBR) Grants NN 96-05-66169, 96-15-98440 .
If you want additional information don't
hesitate to contact.
|
